Application Types GC & GC-MS

Part number: 3305329-1-01 (120v)
3305329-2-01 (230v)

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

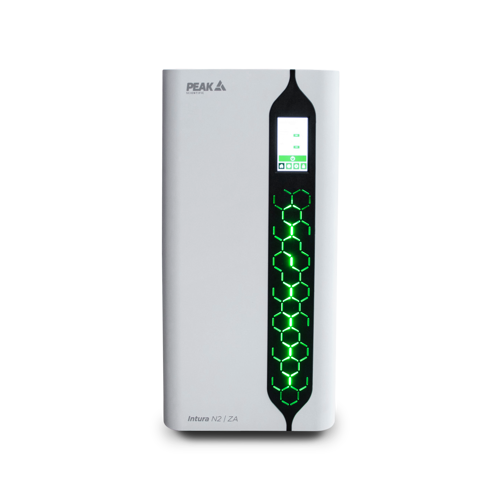

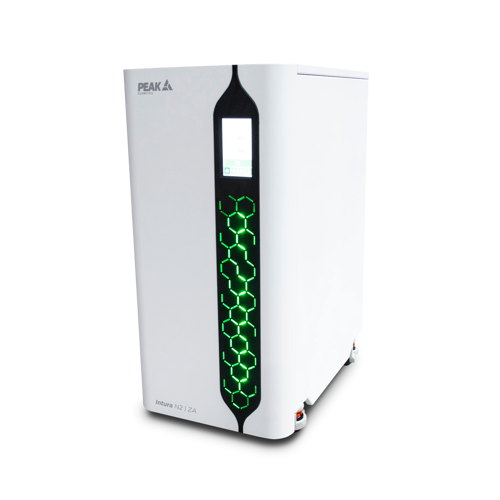

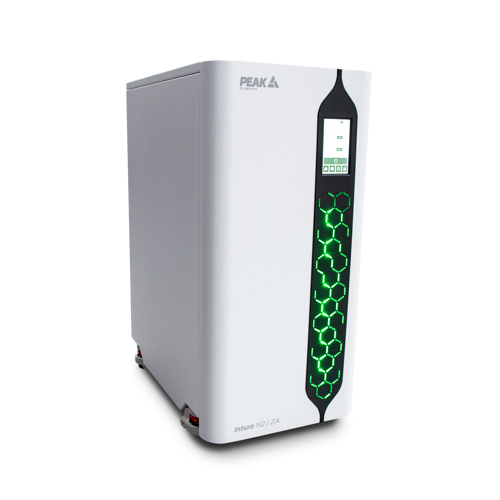

Intura N2|ZA 250 GC Gas Generator

Engineered to provide a constant and consistent source of nitrogen and zero air for carrier and detector make up gas. This 2-in-1 Nitrogen and  Zero Air gas generator with an integrated air compressor can provide high-purity nitrogen and zero air to your GC at flow rates to suit your GC requirements.

PEAK’s uniquely designed CAT chamber ensures increased contact time to eliminate ambient CH4 levels to <0.05ppm in outlet air. PEAK’s Purity safeguard feature delivers only UHP gas to the application, greatly reducing the risk to components which are sensitive to contact with high concentrations of O2.

With Intura, GC users can look forward to complete peace of mind from a safe, dependable and convenient gas supply solution.

Read more
Request a quote
5

Extend warranty
up to 5 years!

Features

Smallest 2-in-1  Zero Air generator with Integrated air compressor

Up to 250cc/min UHP N2 and 1.5LPM Zero air

Ultra-fast start-up - High purity Nitrogen produced in under 45 mins Patented AirMax™ intake filter

Purity safeguard feature

Compact design, saving valuable lab bench space

Improved, more efficient CAT chamber

Low power consumption, reducing power draw and operational carbon footprint

Highest pressure output from compressor-based UHP N2 & ZA generator

High-quality touchscreen for operation, reminders and alerts

12-month comprehensive warranty, with the option to extend up to 5 years

Gas

Gas Type: Nitrogen

Max Gas Flow: 250cc/min

Max Output Pressure: 100psi/6.9bar

Max Purity: 99.9995


Gas Type: Air

Max Gas Flow: 1500cc/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Power Consumption: 636W

Voltage: 100 / 240V

Frequency: 50 / 60Hz

Noise Level: <60

Accreditations: CE, FCC, NRTL, IP20, ISTA

Dimensions & weight

Size (HxWxD) mm: 696 x 330 x 586 mm

Size (HxWxD) Inches: 27.4 x 13 x 23.1 inches

Generator Weight: 60kg / 132lbs
