Application Types LC-MS, CAD & ELSD, Sample Preparation

Part number: 33-00191

Status Available i

Integrated compressor No

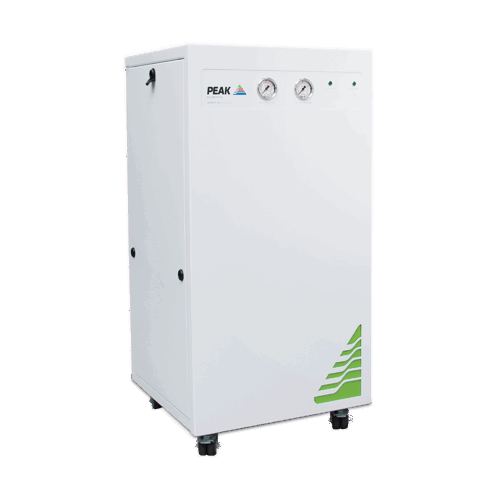

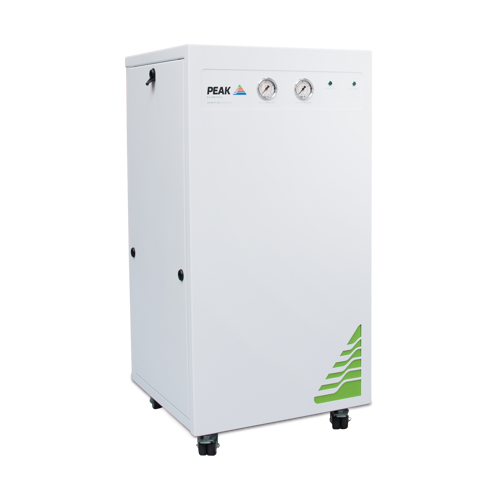

Infinity XE 5031 Membrane Nitrogen Generator

Producing between 30-390 L/min of high purity nitrogen gas, the Infinity XE 5031 can comfortably supply multiple laboratory instruments. With a variable flow rate in relation to purity, set the flow rate you need to meet the total demands of the instruments in your lab.

Peak Scientific's Infinity XE Series generators have been engineered to provide nitrogen to laboratories which already have an external source of clean, dry air which meets, at a minimum meets ISO8753-1:2010 Class 1.4.1 (we can provide assistance on external compressors or pre-filtration systems as part of an Infinity gas generation solution). These systems contain no moving parts, are effectively silent whilst in operation and require minimal maintenance.

Read more
Request a quote Call (800) 767-6532

Features

  • Flow rates from 30-390 L/min
  • Variable flow rate 135 psi outlet pressure
  • Purity from 95-99.5% (flow rate dependent)
  • Tried and tested membrane technology for high purity gas
  • Small laboratory footprint using minimal lab space
  • O2 analyzer fitted as standard only a single annual calibration required
  • Optional purity shutdown feature

Gas

Gas Type: Nitrogen

Min Gas Flow: 30L/min

Max Gas Flow: 390L/min

Max Output Pressure: 135psi/9.3bar

Max Purity: 99.50%

Site & Installation

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Voltage: 100 / 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.4 Amps / 0.174 Amps

Accreditations: CE

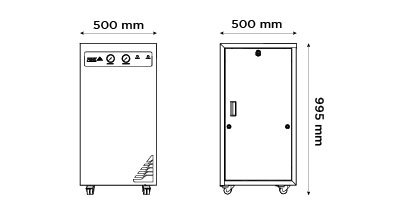

Dimensions & weight

Infinity XE 50

Size (HxWxD) mm: 995 x 500 x 500 mm

Size (HxWxD) Inches: 39.2 x 19.7 x 19.7 inches

Generator Weight: 85kg / 187lbs
