Application Types Sample Preparation

Part number: 13-9070

Status Obsoleted i

Integrated compressor No

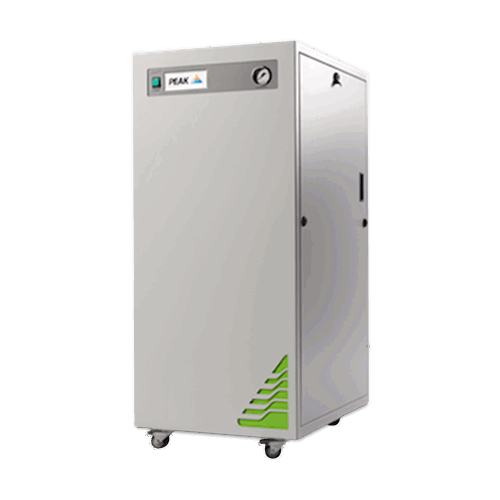

Infinity 9070 Nitrogen Generators

The Infinity 9070 compressor-less nitrogen generator utilizes membrane technology to deliver nitrogen for LC-MS, sample evaporators, turbovap and other sample concentrators.

View active replacement

Features

  • Delivers laboratory-grade nitrogen at up to 980 L/min
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 980L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Min Inlet Pressure: 125psi/8.6bar

Max Inlet Pressure: 145psi/10bar

Start Up Time: 60 mins

Voltage: 230 ± 10% V

Frequency: 50 Hz

Current: 0.123 A

Accreditations: CE

Dimensions & weight

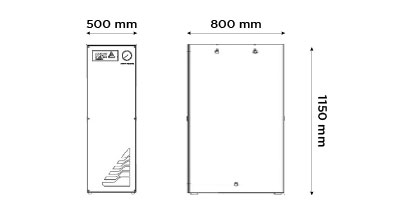

Infinity 9010 Dimensions 01

Size (HxWxD) mm: 1150 x 500 x 800 mm

Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches

Generator Weight: 100kg / 220lbs
