Application types LC-MS, Sample Preparation

Part number: 13-9020

Status Discontinued i

Gas types Air

Integrated compressor No

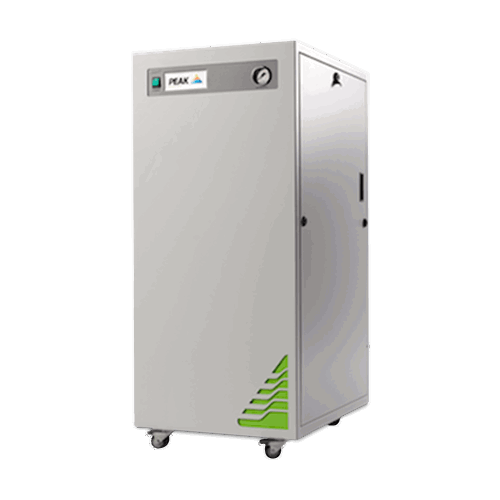

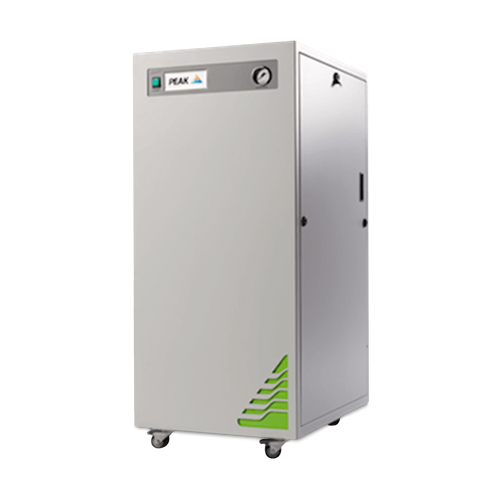

Infinity 9020 Nitrogen Generator

The Infinity 9020 compressor-less nitrogen generator utilizes membrane technology to deliver nitrogen for LC-MS, sample evaporators, turbovap and other sample concentrators.

Features

  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0

Max Gas Flow: 520

Site & installation

Min Inlet Pressure: 125psi/8.6bar

Max Inlet Pressure: 145psi/10bar

Water Purity Requirements: N/A

Water Consumption: TBC

Start Up Time: 60 mins

Voltage: 230 VAC

Frequency: 50 W/Hz

Current: 0.123

Dimensions & weight

Infinity 9010 Dimensions 01

Size (HxWxD) mm: 1150 x 500 x 800 mm

Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches

Generator Weight: 75kg / 165lbs
