Infinity 5050 Nitrogen Generator
The Infinity 50 Series compressorless nitrogen generator utilizes membrane techn...
Applications: LC-MS

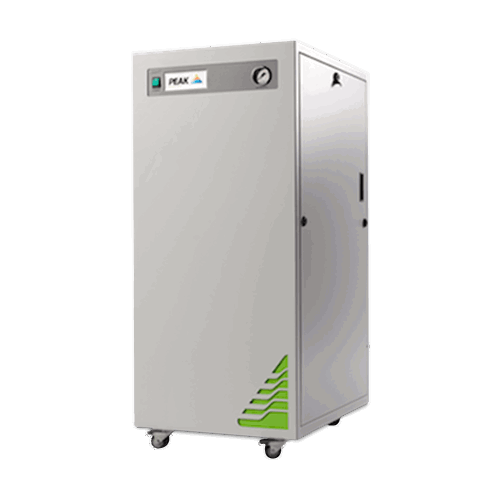

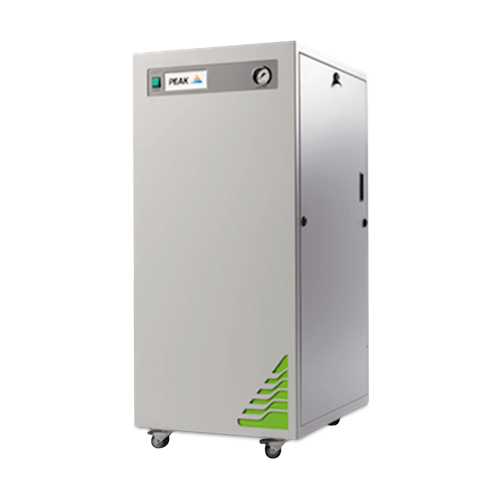

Infinity 5060 Nitrogen Generator
The Infinity 50 Series compressorless nitrogen generator utilizes membrane technology to deliver higher nitrogen flows for multiple LC-MS or LC-MS/MS instruments, Sample Evaporator and NMR applications, utilising an existing in-house supply of compressed air.
View active replacementFeatures
- Delivers laboratory-grade nitrogen at up to 360 L/min
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 360L/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Min Inlet Pressure: 120psi/8.3bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: 180
Start Up Time: 60 mins
Voltage: 230 ± 10% VAC
Frequency: 50 Hz
Current: 0.123 Amps
Max Operating Temp: 30°C / 86°F
Accreditations: CE
Dimensions & weight
Size (HxWxD) mm: 1150 x 500 x 800 mm
Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches
Generator Weight: 95kg / 209lbs
