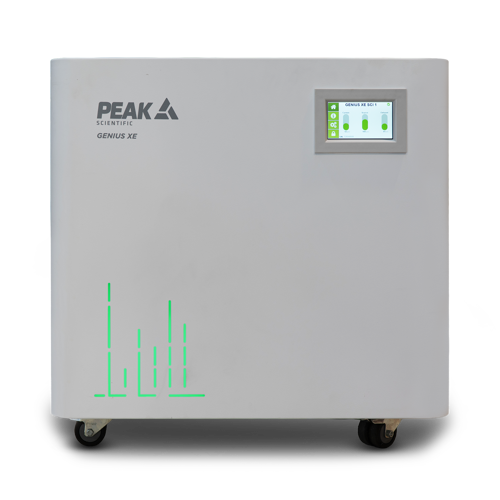

Genius XE SCI 1
Genius XE SCI 1 has been designed to meet the requirements of SCIEX LCMS systems in a cleaner, smarter and more compact system. Genius XE SCI 1 has been engineered to outperform alternative Tri-Gas generators on the market while being easier to use and taking up less room in your lab.
Build around the trusted and proven technology of PEAK’s Genius series of generators, delivering laboratory-grade nitrogen and dry air at various pressures and flow rates, Genius XE SCI 1 is ideally suited to SCIEX LC-MS systems.
Extend warranty
up to 5 years! *
* Available only in select regions when purchased directly from PEAK Scientific
Features
- Precisely aligned to SCIEX requirements – tested, approved and recommended by SCIEX
- Delivers nitrogen as curtain gas and dry air as source and exhaust gas
- Compact, under bench solution with low lifetime running costs
- More energy efficient, using 40% less energy than previous model and ~39% less heat output
- Compressor-based solution, no need for an external air supply
- High-specification latest generation compressors located in insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- HMI screen displaying full performance parameters, performance status and service due
- Minimal set-up required
- 12-month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 15L/min
Max Output Pressure: 65psi/4.5bar
Gas Type: Air
Max Gas Flow: 30L/min
Max Output Pressure: 100psi/6.9bar
Gas Type: Air
Max Gas Flow: 10L/min
Max Output Pressure: 60psi/4.1bar
Site & Installation
Power Consumption: 982W (230V 50Hz)
Voltage: 230V
Frequency: 60 Hz
Current: 6h A
Heat output: 3349 BTU/hr
Max Operating Temp: 10°C / 50°F
Particles: none
Phthalates: none
Suspended Liquids: none
Noise Level: 50 dBA
Accreditations: CE, FCC, CSA
Dimensions & weight
Size (HxWxD) mm: 610 x 600 x 800 mm
Size (HxWxD) Inches: 24 x 23.6 x 31.5 inches
Generator Weight: 97kg / 213.4lbs
