Application Types MP-AES

Part number: 10-6355

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor Yes

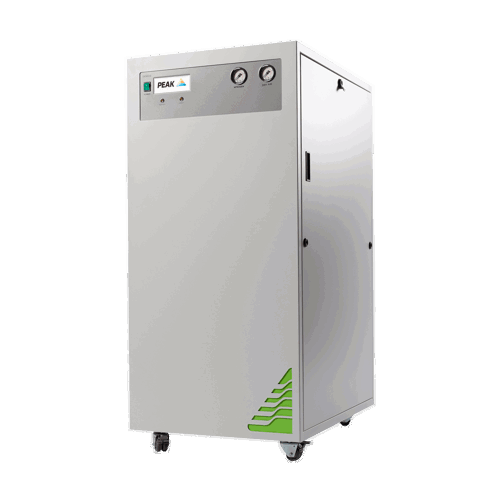

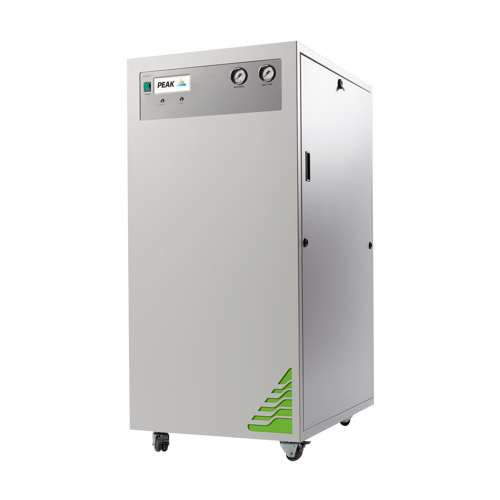

Genius 3055 Nitrogen and dry air gas generator

Name: Genius 3055 Nitrogen and dry air gas generator
Brand: Peak Scientific
SKU: 10-6355

The Genius 3055 is a dual gas system developed to supply nitrogen gas and dry air to the Agilent MP-AES. Both gas outputs work independently of one another in order for the flows to be tailored for its specific application.

View active replacement

Features

Two independent gas outputs in one unit
Highly economical source of nitrogen with low lifetime running costs
Service indication to allow planning of preventative maintenance
Minimal set-up required
Gas is supplied on demand so generator works to your schedule
Internal compressors housed in dedicated compartments reducing noise and vibration
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 25L/min

Max Output Pressure: 90psi/6.2bar

Max Purity: 99.5%

Gas Type: Air

Max Gas Flow: 36.5L/min

Max Output Pressure: 90psi/6.2bar

Site & Installation

Gas Outlets Fitting: 2x 1/4" BSPP

Start Up Time: 30 mins

Power Consumption: Up to 2760 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 12 A

Heat output: 9412 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 220kg / 484lbs

Downloads

Genius 3055 - Data Sheet (Eng)

Genius 3051 & 3055 - User Manual (Eng)

Genius 3051 & 3055 - Installation Guide (Eng)

Related Products

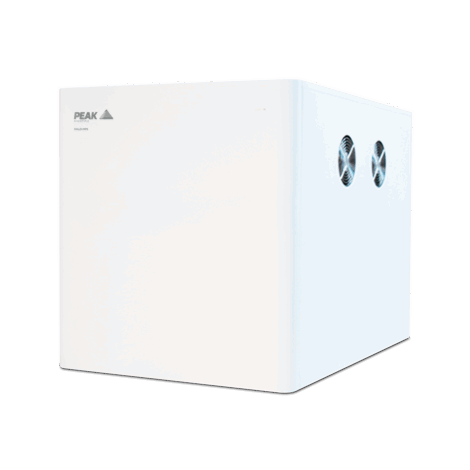

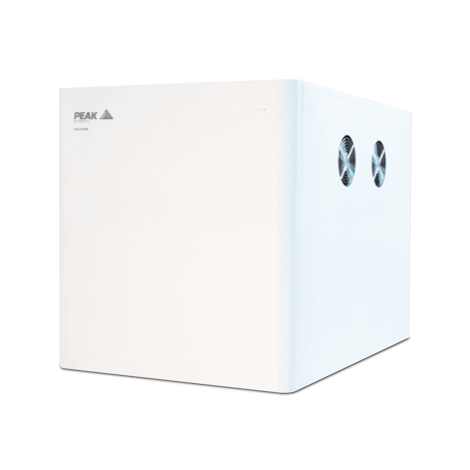

Halo - MP-AES nitrogen gas generator - Available only for Latin America territory
