Application Types LC-MS

Part number: 10-6324

Status Obsoleted i

Integrated compressor Yes

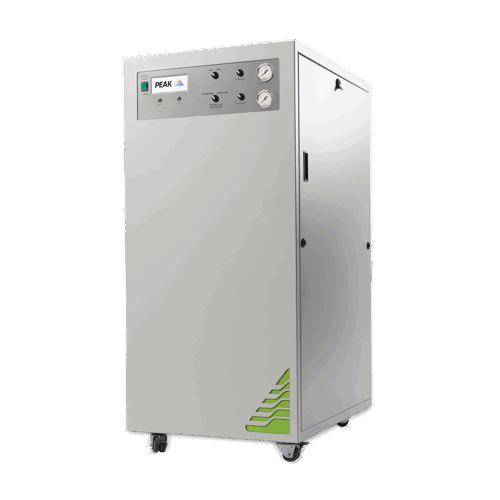

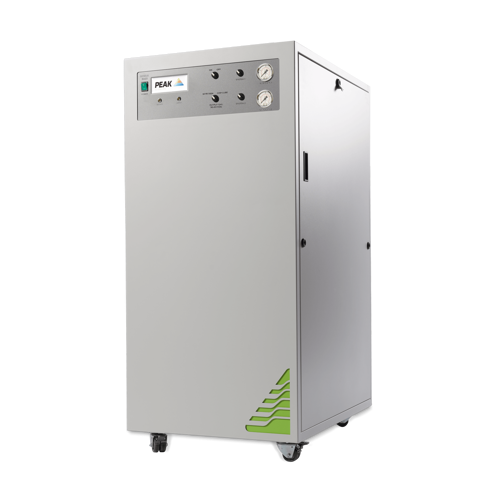

Genius 3023 Oxygen-rich nitrogen gas generator for chip cube

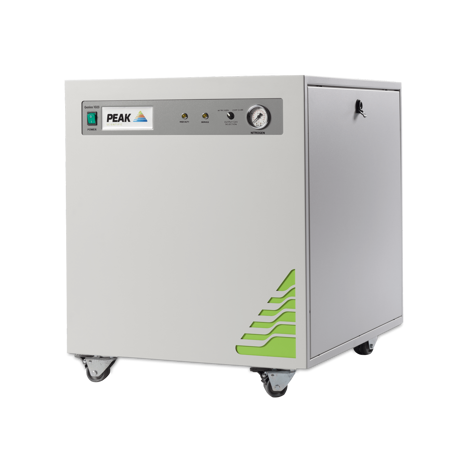

Designed to offer increased capacity to its Genius 1023 counterpart, the Genius 3023 can provide gas for two Agilent instruments requiring either LC-MS grade nitrogen, such as Agilent's 6520, 6530, 6538, 6540 and 6560, or the 10% oxygen rich nitrogen suitable for Agilent's Chip Cube. instrument.


  • Delivers a dual output of either LC-MS grade nitrogen or 10% oxygen-rich nitrogen for Agilent Chip Cube
  • Each gas supply is controlled manually and is independent of the other
  • Higher flow rate 30 series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty


Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Start Up Time: 30 mins

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 12 A

Accreditations: CE, CSA

Dimensions & weight

Genius Nitrogen Generator 3010,13,20,22 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 189kg / 415.8lbs
