Application Types LC-MS

Part number: 10-6313

Status Discontinued i

Integrated compressor Yes

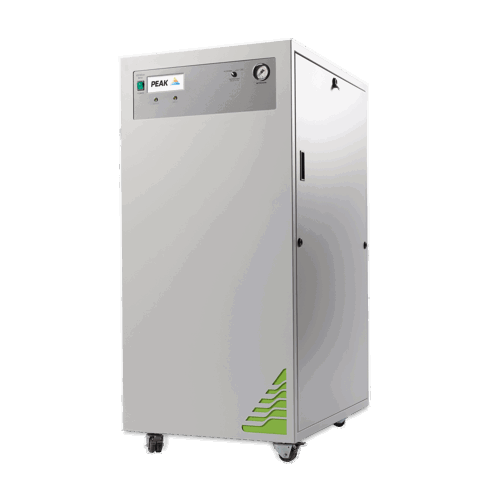

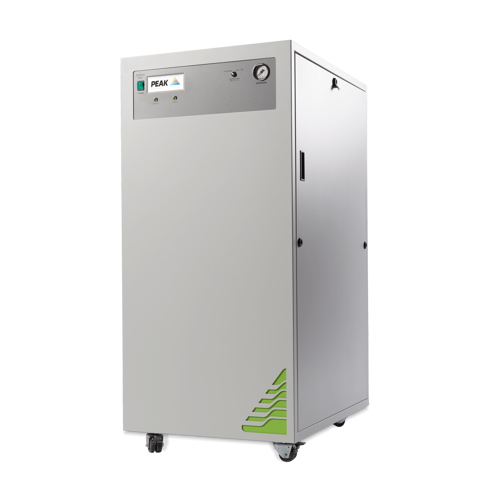

Genius 3013 Oxygen-rich nitrogen gas generator

Specifically developed to support Chip Cube applications on the 6490 QQQ and 6550 Q-TOF mass spectrometers, which demand a much higher gas flow. The Genius 3013 nitrogen generator can be switched to provide either laboratory-grade nitrogen or the 10% oxygen-rich nitrogen required for Agilent Technologies' Chip Cube instrument.

Call (800) 767-6532

Features

  • Delivers a single output of either LC-MS grade nitrogen or 10% oxygen-rich nitrogen for Agilent Chip Cube
  • Higher flow rate 30 series generator designed for hungrier LC-MS applications
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 64L/min

Max Output Pressure: 100psi/6.9bar

Max Purity: up to 10% O2

Site & Installation

Start Up Time: 30 mins

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 13 Amps

Accreditations: CSA, CE

Dimensions & weight

Genius Nitrogen Generator 3030, 31 Dimensions

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 189kg / 415.8lbs
