Application Types GC & GC-MS

Part number: 10-9240

Status Retired i

Integrated compressor Yes

Fusion 1010 Nitrogen Generator

The Fusion 1010 dual gas generator was developed to deliver high purity zero nitrogen and zero air, for GC carrier & detector gas. The Fusion 1010 also comes with a rapid restart function allowing the unit to be operational shortly after a power cut, or if power is removed from the unit. Ideal for laboratories in locations where a steady power supply cannot be guaranteed.

Features

  • Catalyst chamber removes hydrocarbons (as methane) to <0.1 ppm
  • Zero air and zero nitrogen improve stability of baseline
  • Delivers two separate outputs of zero nitrogen and zero air
  • Rapid restart function allows for immediate supply of gas after a power cut Internal air compressor removes the need for an external source of air
  • Compact size means the generator can fit under a standard lab bench
  • Noise level lower than most standard laboratory instruments 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0cc/min

Max Gas Flow: 600cc/min

Max Output Pressure: 80psi/5.5bar


Gas Type: Air

Max Gas Flow: 1500cc/min

Max Purity: <0.1ppm

Site & Installation

Start Up Time: 3 hours

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 5 Amps

Accreditations: CE

Dimensions & weight

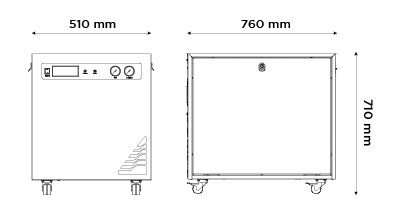

Fusion 1010 Dimensions 01

Size (HxWxD) mm: 510 x 760 x 710 mm

Size (HxWxD) Inches: 20.1 x 29.9 x 28 inches
