Intura H2 100 GC Carrier Gas
The Intura H2 100 is designed to provide the gas needed for detectors requiring hydrogen fuel gas, such as FID and FPD as well as collision gas for ICP-MS.
Applications: GC & GC-MS, ICP-MS
Application Types GC & GC-MS, ICP-MS
Part number:
3305698-0-04 (Auto-fill)
3305698-0-14 (Pressure-fill)
Status Available i
Integrated compressor No

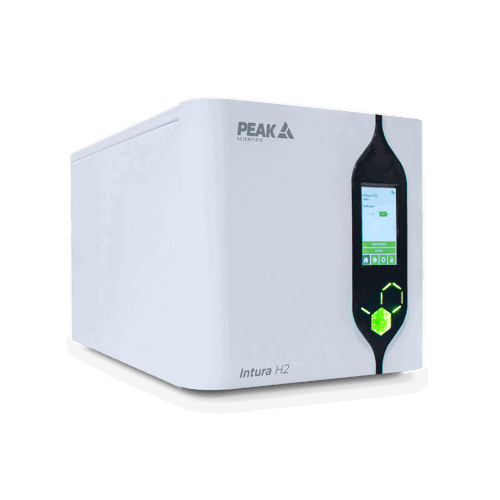

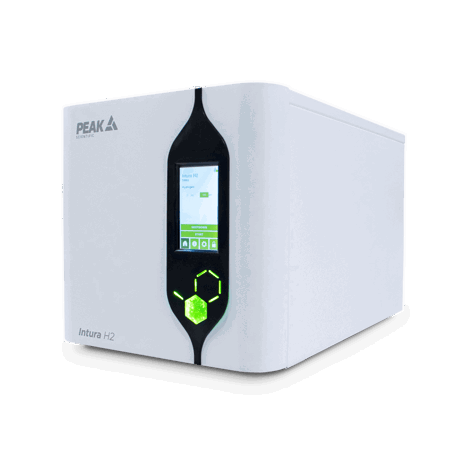

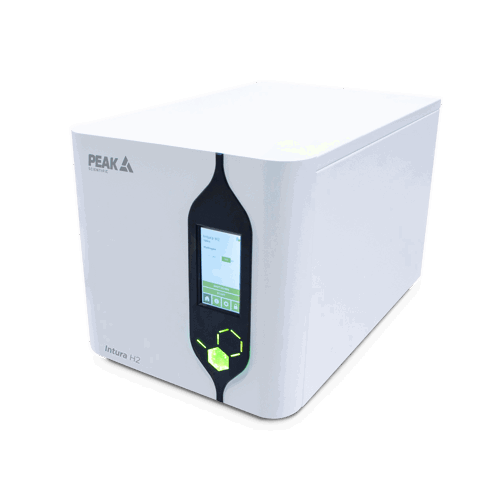

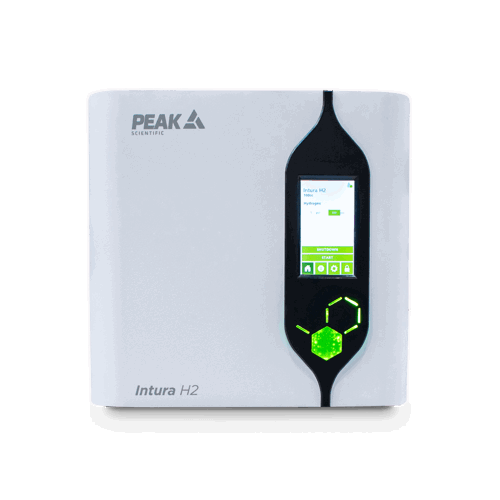

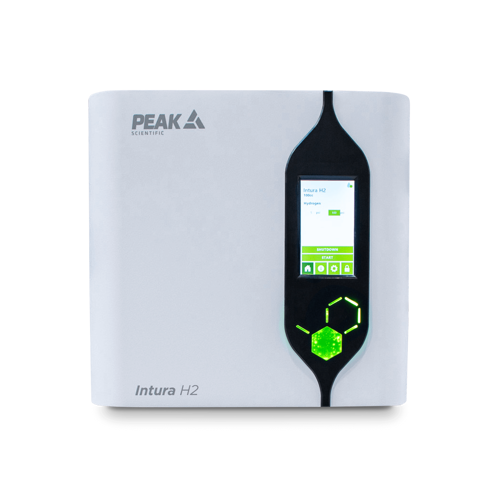

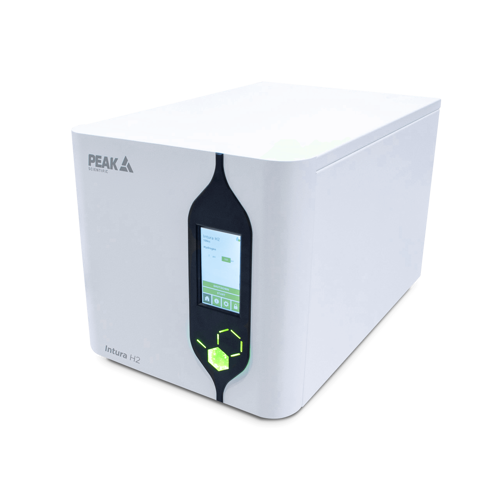

Intura H2 1000 GC Carrier Gas
Designed to provide high-purity hydrogen for GC carrier and detector, as well as ICP-MS and hydrogenation applications. Intura Hydrogen is the safe and convenient alternative to cylinder gas supply.
Intura Hydrogen utilizes the latest Proton Exchange Membrane (PEM) cell technology to separate deionizied water through electrolysis, alongside in-built water quality monitoring and pre- and post-filtration to ensure only the highest quality of hydrogen gas for your GC.
Read more
Request a quote
Extend warranty
up to 5 years!
Features
- 99.99999% hydrogen
- Flow rate up to 1000cc/min
- Variable pressure up to 175psi
- Latest PEM technology, generating reliable and consistent source of hydrogen
- Compact design, saving valuable lab bench space
- Deionized water quality monitoring and alerts
- Safe gas supply with low internal H2 volume, internal leak detection and auto-shutdown
- Touchscreen for operation, reminders and alerts
- Pressure water-fill option for additional ease of use
- Low power consumption and standby mode
- Remote start/stop functionality available for user configuration Ready on-board daisy-chain (cascading) function for capacity expansion
- H2 detector compatibility as standard
- 12-month comprehensive warranty, with the option to extend up to 5 years
- 3-year PEM cell warranty as standard
Gas
Gas Type: Hydrogen
Max Gas Flow: 1000cc/min
Max Output Pressure: 175psi/12.1bar
Max Purity: 99.99999%
Site & Installation
Power Consumption: 674 Watts
Voltage: 100 / 240
Accreditations: CE, FCC, NRTL, IP20, ISTA
Dimensions & weight
Size (HxWxD) mm: 324 x 330 x 520 mm
Size (HxWxD) Inches: 12.8 x 13 x 20.5 inches
Generator Weight: 25kg / 55lbs
Downloads
Related Products
Need help finding a solution?
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
Calculate your gas needs
Peak's GC Gas calculator is an easy-to-use online tool that will quickly help you choose the right combination of generators to suit your lab’s needs. By answering a few simple questions, we will calculate the gases, flows and purities required to support your GC applications and recommend a solution that will improve your lab workflow.
