Application Types TOC

Part number: 06-3200

Status Obsoleted i

Integrated compressor No

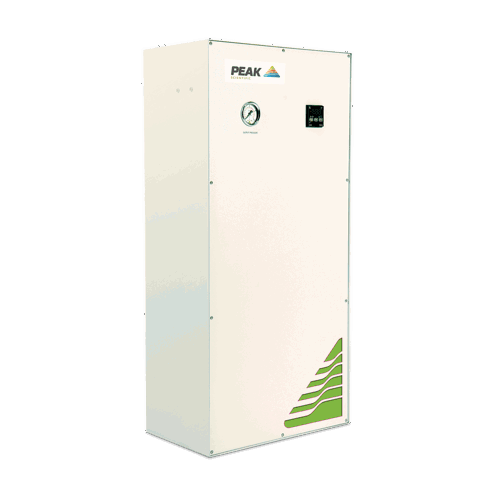

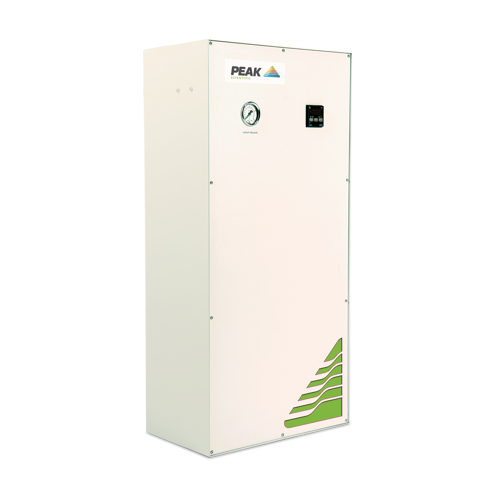

The SCTOCA 500cc generator has been developed to cater for systems which require a pure gas supply free of hydrocarbons with no carbon dioxide.

With the SCTOCA based on proven technology, it removes moisture, hydrocarbons and CO2. Its own internal air compressor makes this unit independent from in–house air.

Read more


  • Quiet in operation – noise level of 57 db(A)
  • Anti-vibration – maximum reduction of vibration
  • Minimum user intervention
  • Improved drainage – reduction of moisture carry over and thus increased reliability
  • Robust control system – improves safety and reliability of units.


Gas Type: Air

Max Gas Flow: 500cc/min

Max Purity: 0.10000ppm THC

Site & Installation

Gas Outlets Fitting: 1 x ¼” BSP

Power Consumption: 230

Frequency: 50/60

Current: 4-6.3 Amps

Particles: <0.01 µm

Noise Level: 57 dBA @ 1m

Dimensions & weight

Size (HxWxD) mm: 360 x 570 x 714 mm

Size (HxWxD) Inches: 14.2 x 22.4 x 28.1 inches

Generator Weight: 55kg / 121lbs
