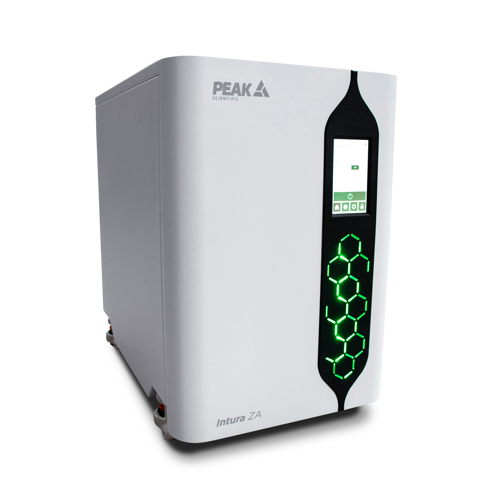

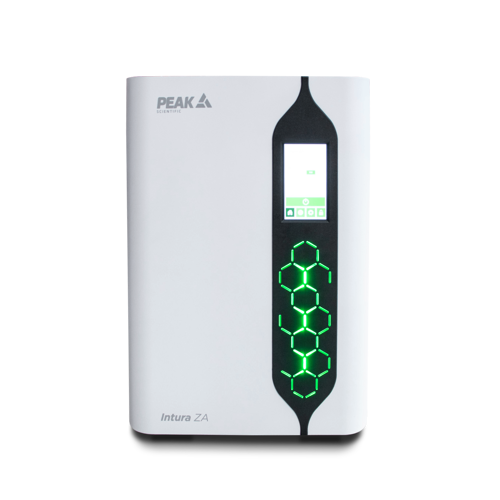

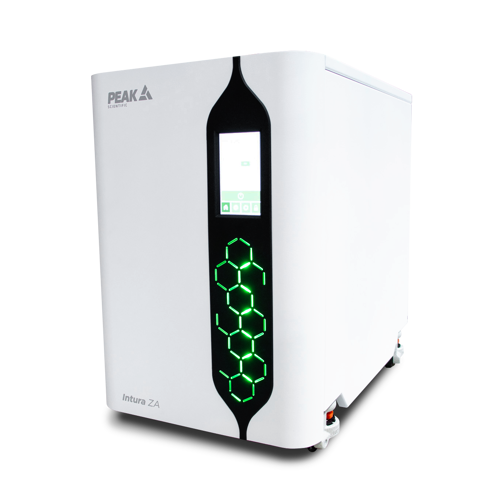

Intura Zero Air 1500 GC Gas Generator
The Intura Zero Air generator is designed specifically to supply clean, dry, hydrocarbon-free air to support your GC
Applications: GC & GC-MS
Application Types GC & GC-MS
Part number:
3305331-1-04 (120v)
3305331-2-04 (230v)
Status Available i
Integrated compressor Yes
Intura Zero Air 15000 GC Gas Generator
Designed to supply clean, dry, hydrocarbon-free air for detector gas to your GC.
PEAK’s uniquely designed CAT chamber optimizes the path of compressed air as it enters the CAT chamber, ensuring increased contact time to eliminate ambient CH4 levels, from 100ppm to <0.05ppm in outlet air. This efficient design operates at a lower temperature, reducing power consumption and heat output.
Coming in a compact design, Intura Zero Air helps to minimize the total footprint required in the lab along with providing the flexibility to add or remove other Intura modules as your requirements evolve over time.
Read more
Request a quote
Extend warranty
up to 5 years!
Features
Zero Air generator with integrated air compressor
Up to 15L/min
Adjustable pressure up to 100psi
Highly efficient CAT chamber
Low power consumption, reducing power draw and operational carbon footprint
Compact design, saving valuable lab bench space
In-field upgrade to N2|ZA possible
High-quality touchscreen for operation, reminders and alerts
Auxiliary air outlet enabling support of Intura N2 or autosamplers, pyrolizers and other laboratory applications requiring clean, dry air
Advanced oil-free compressor
12-month comprehensive warranty, with the option to extend up to 5 years
Gas
Gas Type: Air
Max Gas Flow: 15L/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Power Consumption: 616W
Voltage: 100 / 240V
Frequency: 50/60Hz
Noise Level: <60
Accreditations: CE, FCC, CSA, IP20, ISTA
Dimensions & weight
Size (HxWxD) mm: 496 x 330 x 586 mm
Size (HxWxD) Inches: 19.5 x 13 x 23.1 inches
Generator Weight: 40kg / 88lbs
