Part number: 3302252

Status Available i

Integrated compressor No

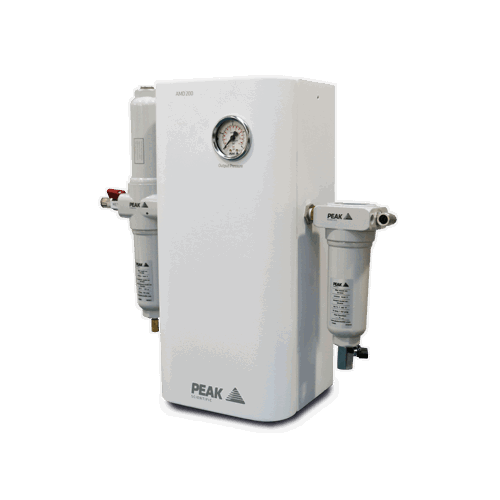

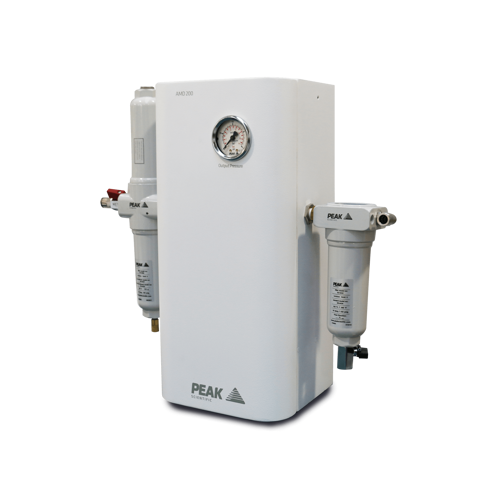

AMD 200

Capable of flow rates up to 200 L/min, the AMD 200 Air Membrane Dryer is compatible with any compressed air source, offering a compact and lightweight must-have for any modern laboratory requiring instrument grade air. With no moving parts, AMD 200 is effectively silent in operation. This dryer also has very low maintenance requirements, delivering a cost effective source of clean, dry instrument grade air from your existing compressed air supply for the laboratory.

Request a quote Call (800) 767-6532

Features

  • Variable flow up to 200 L/min
  • Variable pressure up to 120 psi
  • Clean, dry instrument grade air
  • Compact, space saving design
  • Completely silent in operation
  • No moving parts means minimum maintenance requirements and ensures long life 24/7 operation at optimum performance if required
  • Generator only needs to be connected to the air source and application

Gas

Gas Type: Air

Max Gas Flow: 200L/min

Max Output Pressure: 120psi/8.3bar

Max Purity: 99.50%

Site & Installation

Gas Outlets Fitting: 1 x 1/4 " BSPP

Min Inlet Pressure: 110psi/7.6bar

Max Inlet Pressure: 145psi/10bar

Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1

Max Operating Temp: 35°C / 95°F

Phthalates: Phthalate & BHT Free

Suspended Liquids: None

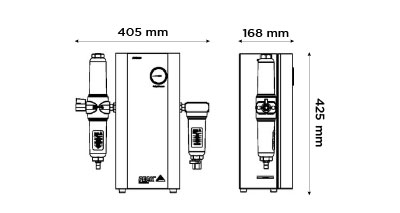

Dimensions & weight

AMD 200 01

Size (HxWxD) mm: 425 x 405 x 168 mm

Size (HxWxD) Inches: 16.7 x 15.9 x 6.6 inches

Generator Weight: 8kg / 17.6lbs
